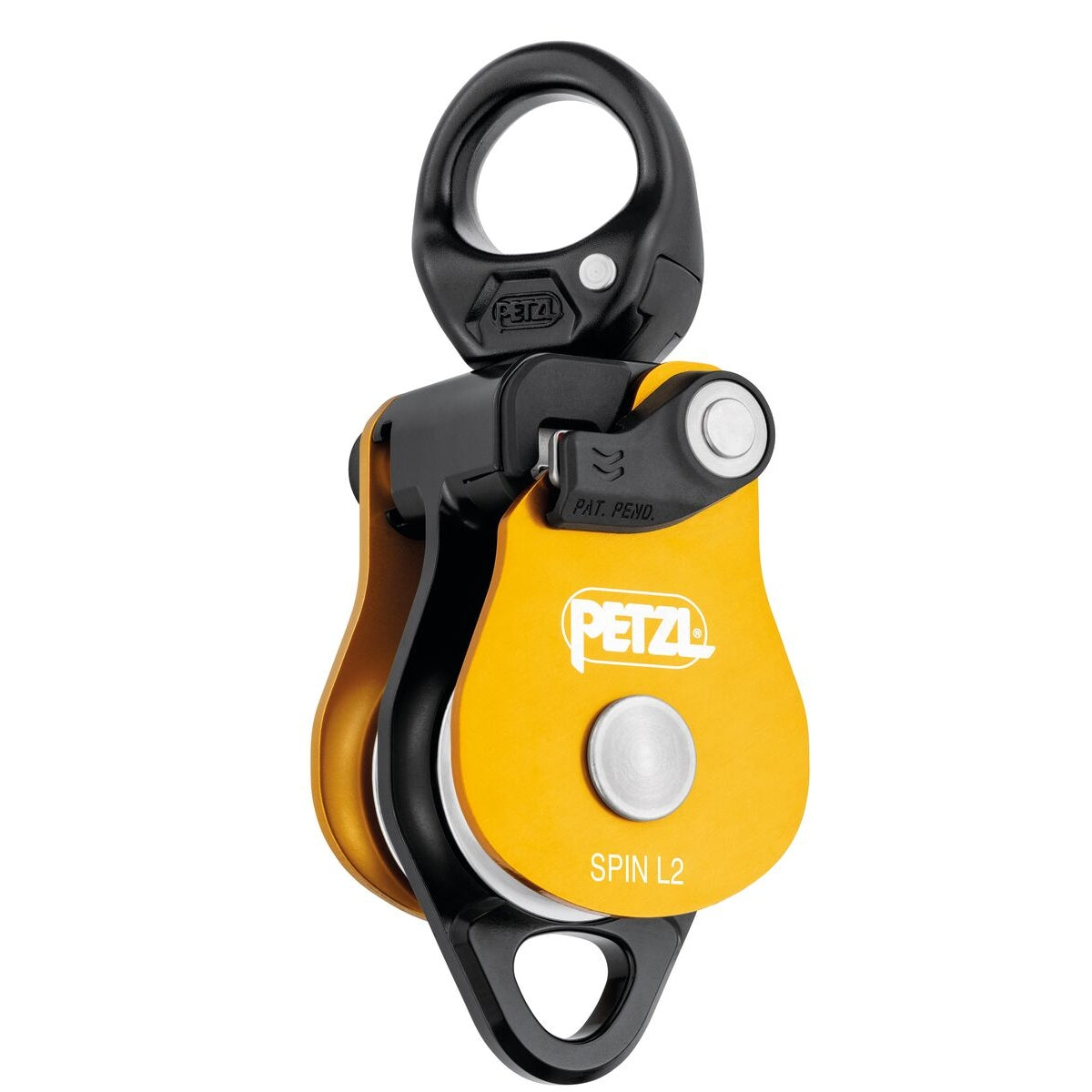

Spin L2

Designed for maximum simplicity when setting up haul systems or tyroleans for work at height or rescue:

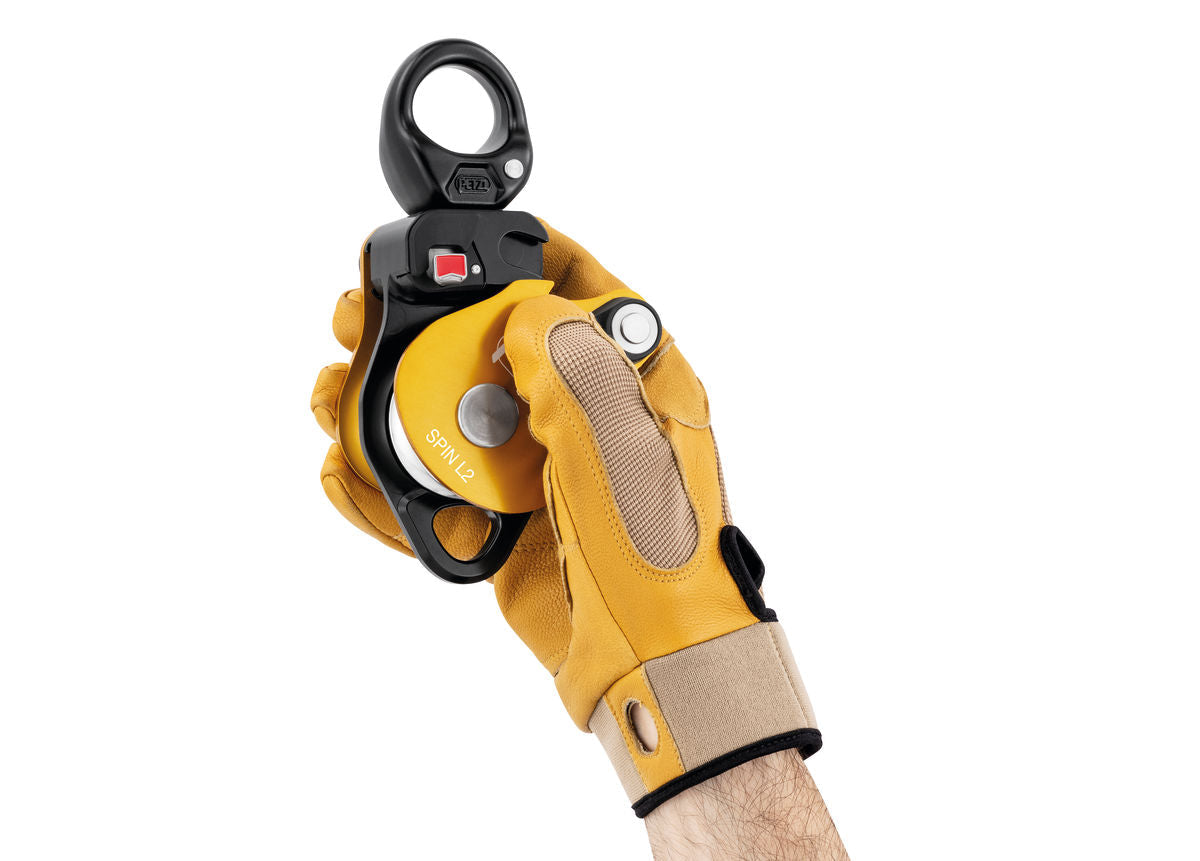

• triple-action opening of the moving side plate is quick and easy, even with gloves

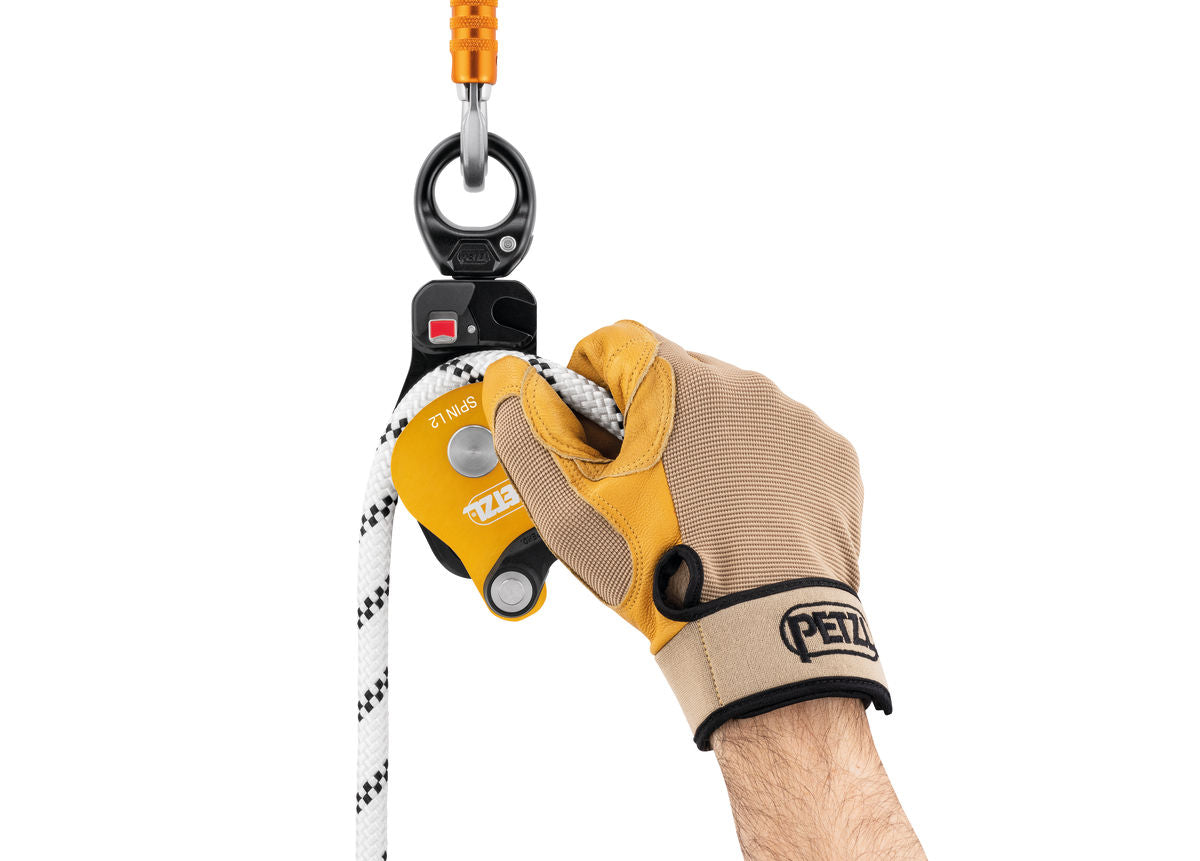

• the rope can be installed with the device connected to the anchor.
• red mark provides a visual warning when the moving side plate is unlocked

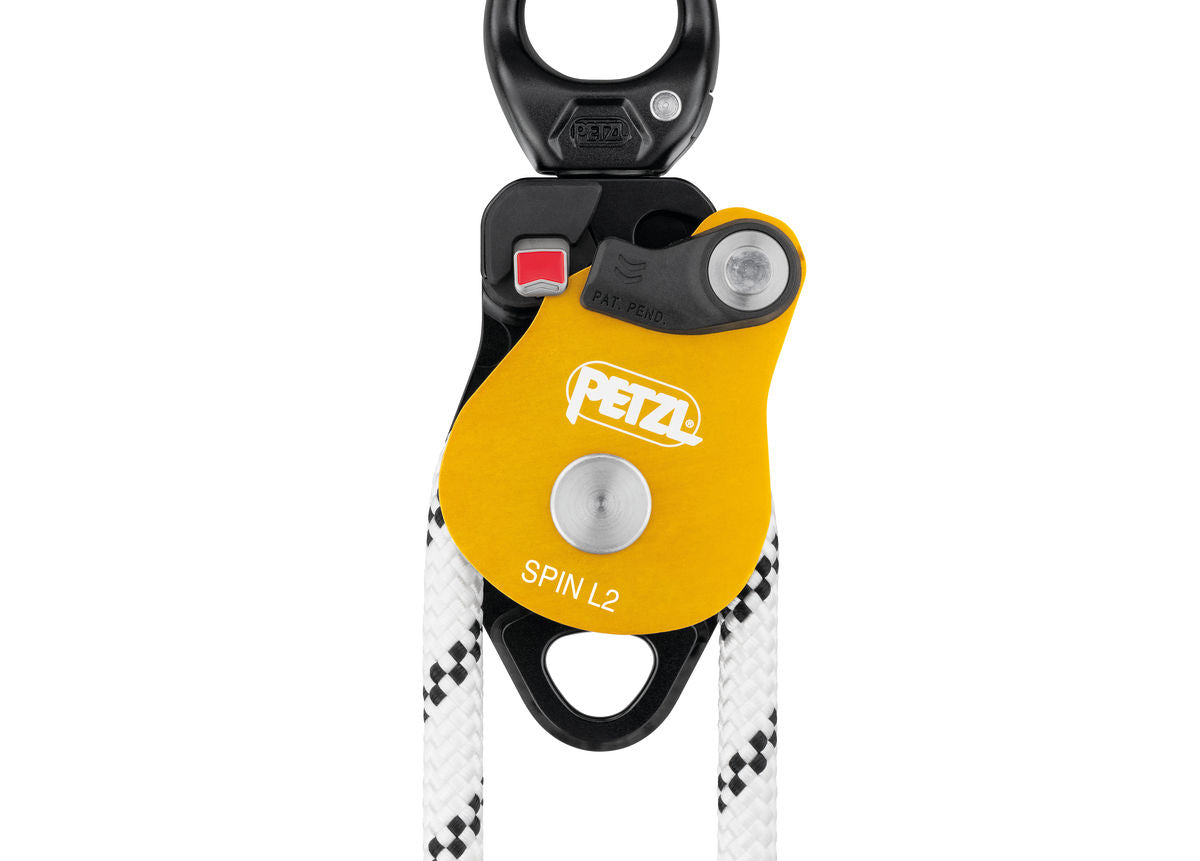

• special side plate design protects the rope path

Optimal efficiency:

• large diameter sheaves mounted on sealed ball bearings for excellent efficiency

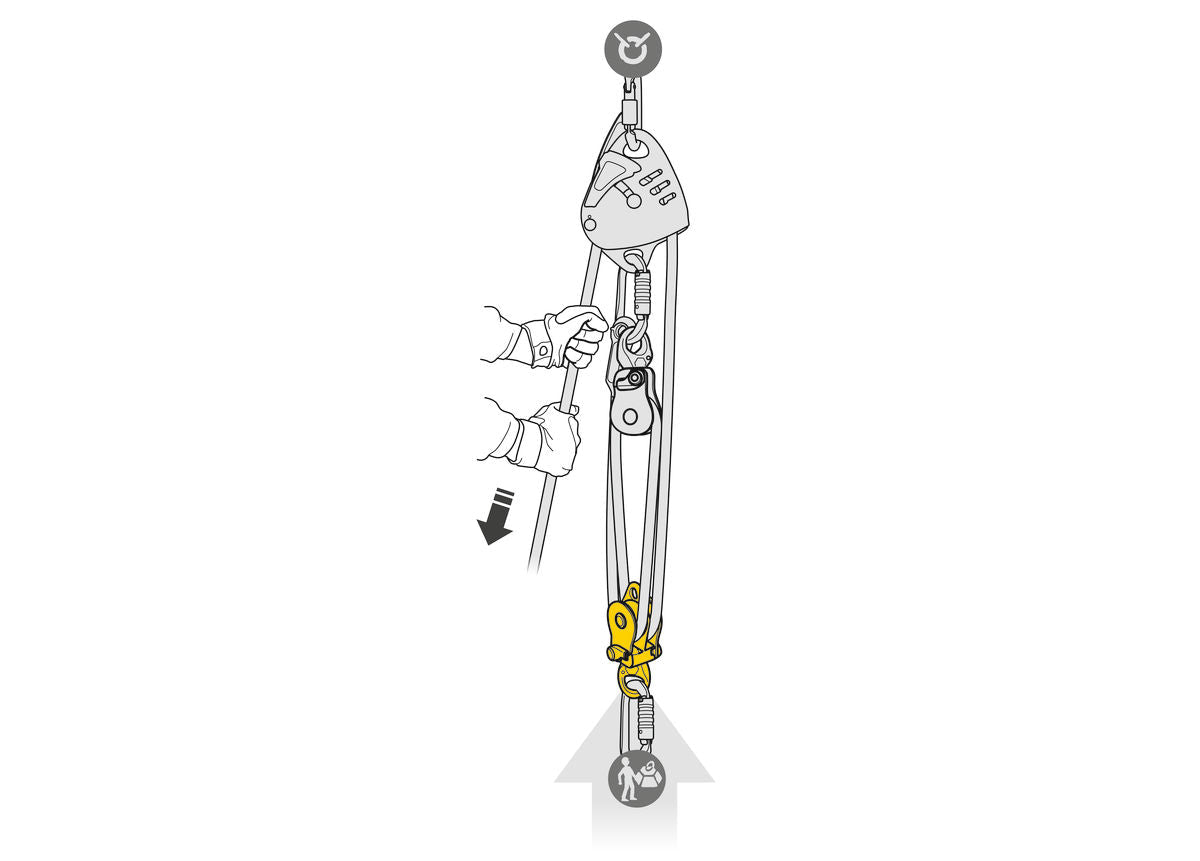

Parallel-mounted sheaves and auxiliary attachment point for setting up various types of complex haul systems

Easy handling:

• swivel allows pulley to be oriented under load
• swivel accepts up to three carabiners
• swivel and auxiliary attachment point allows the use of ropes and slings to facilitate maneuvers.

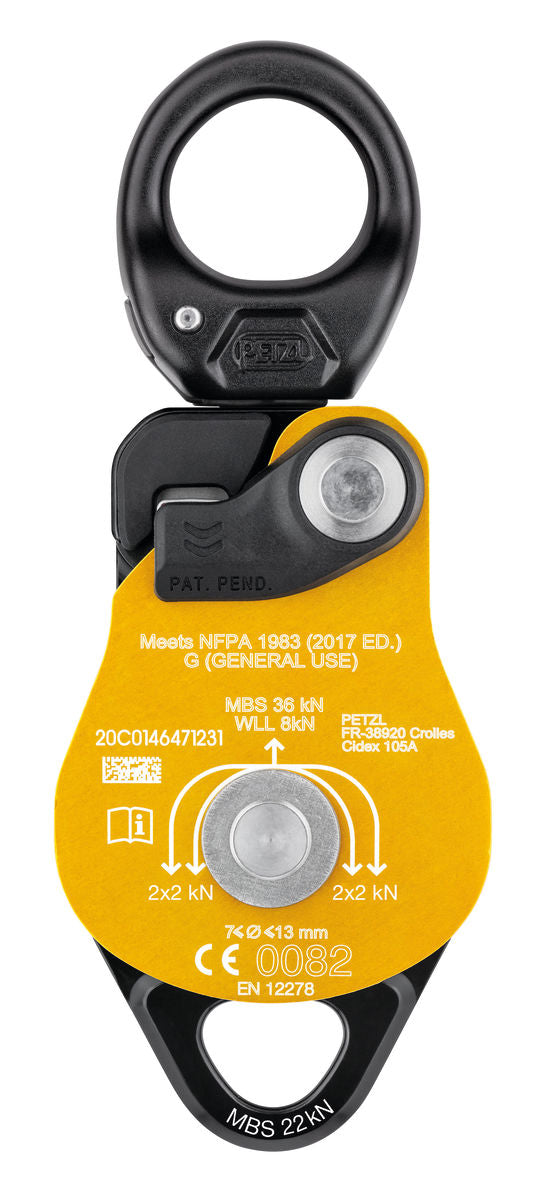

Specifications

• Weight: 480 g
• Material(s): aluminum, stainless steel, nylon
• Min. rope diameter: 7 mm
• Max. rope diameter: 13 mm
• Sheave type: sealed ball bearings
• Sheave diameter: 38 mm
• Maximum working load: 8 kN (3 kN per strand, more information in the Instructions for Use)
• Breaking strength: 36 kN
• Efficiency: 95 %

Certification(s): CE EN 12278, NFPA 2500 Pulley General Use, UIAA, XF 494 : FZL-H-T9.5/13
